H2>Specifications
Dimensions>
- Size (LXWXH) :2140×1140×780
- Wheelbase :1240
- Seat Height: 860
- Ground Clearance: 210
- Dmin Turning:3175
- Fuel Capacity (l)-F 14L
- Wheels Front/rear-F Vacuum
- Types Front-F AT25×8-12/22 Kpa
- Types Rear-F AT25×10-12/25 Kpa

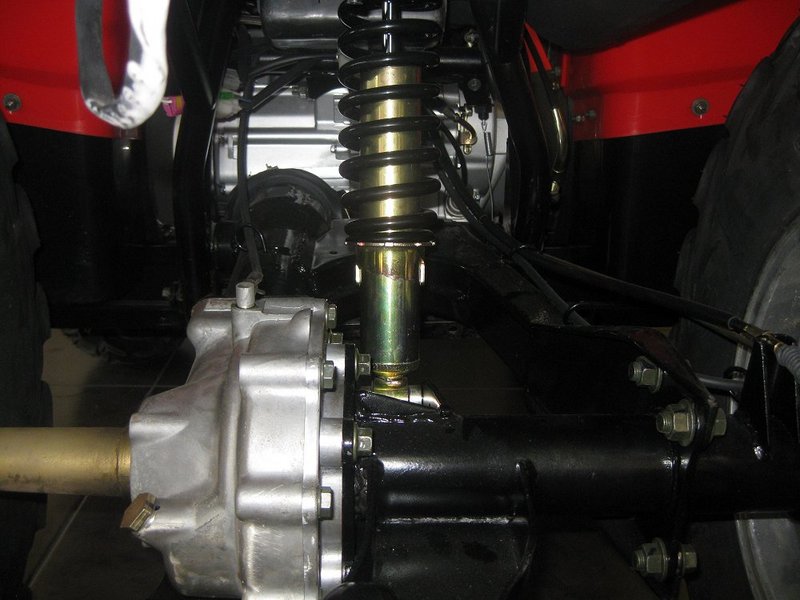

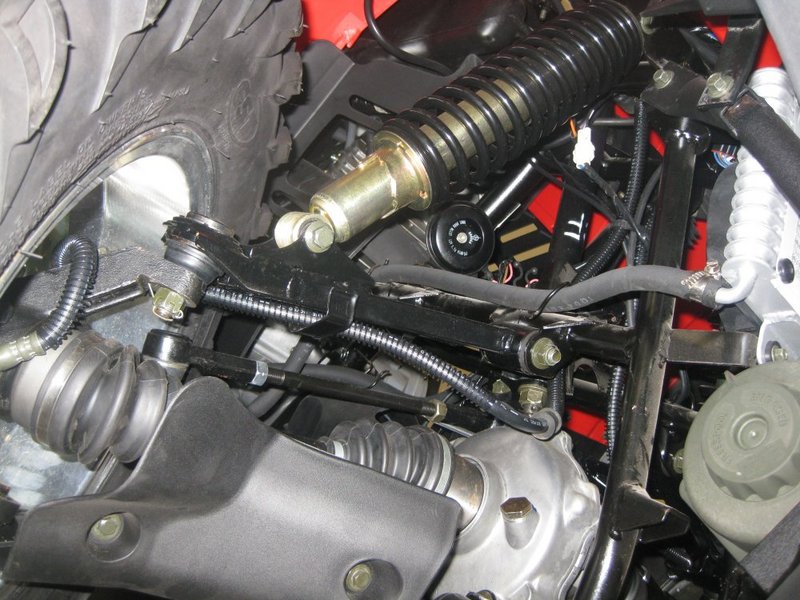

- Suspensions Front/Rear-FIndependent double-wishbone front suspension /rear centering shock absorbing
- Brakes Front-F disk brake/right hand operation
- Brakes Rear -Fdrum brake/foot operation and left hand operationDry Weight-F270kgMax. loading -F210kg
- Brake distance -F≤8m/30km/h
- Min fuel -F maximum speed -F≥75km/h
- Max angle-F -„25°

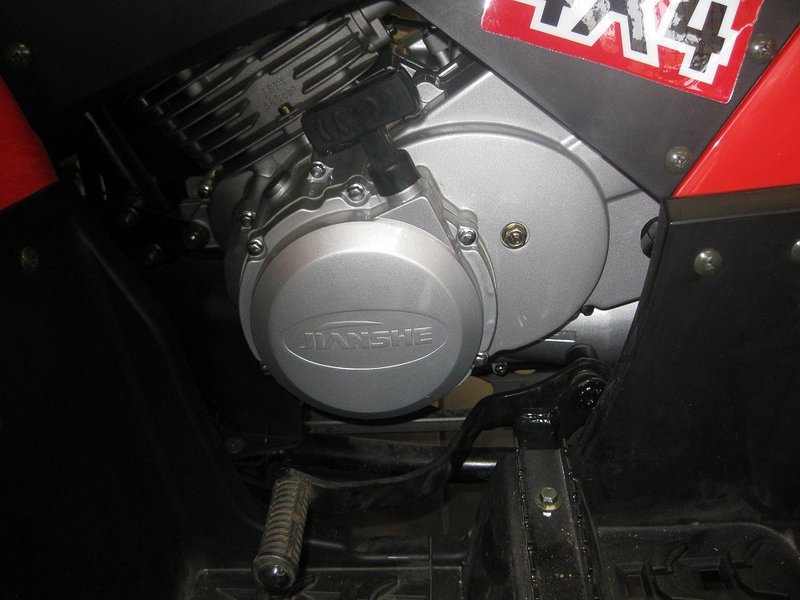

- Engine type-Fsingle-cylinder, Air-cooled, 4-stroke,
- Engine model-FJS183FMQ/JIANSHE
- Bore×Stroke-F 83×71.6
- Displacement -F387.4
- Compression Ratio -F8.7 : 1
- Carburetor-F Plug
- rated power-F 12Kw (5700r/min)
- Max. torque-F28N.m (6500r/min)
- Ignition-F CDI
- Starter-FHand pulled recoil starter/electric starter
- Shift type-F 5 speed front driving and 1 speed reverse driving
- Primary ratio 3.167
- Middle transmission ratio 3.333/1.889/1.364/0.962/0.704, reverse 3.020
- Final ratio 5.704
- Clutch Wet centrifugal Automatic
- Gasoline RQ-90 GB17930-1999
- Engine Lubricant AE20W40
- Transmission Lubricant SAE20W40,SAE10W30,SAE5W30
- Lubricant Oil capacity E/G:3L TRANS:0.25L
- lubricant Press/Splash
- Spark plug D8REA
- Battery type 12V 20Ah
Please contact the friendly staff at Perth Quad Bikes for more information
Hire: We now offer Quad Bike Hire on Many of Our Current Models. Call for details.
Code: 400cc Quad Bike

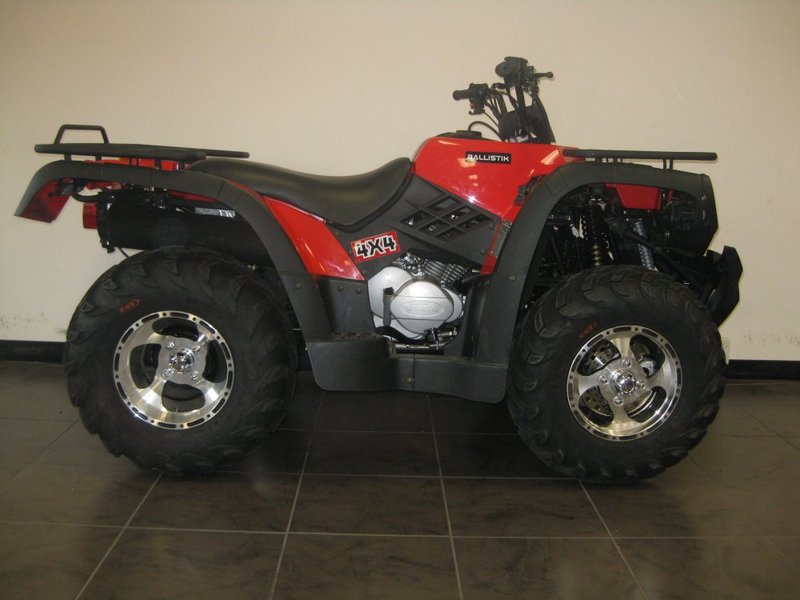

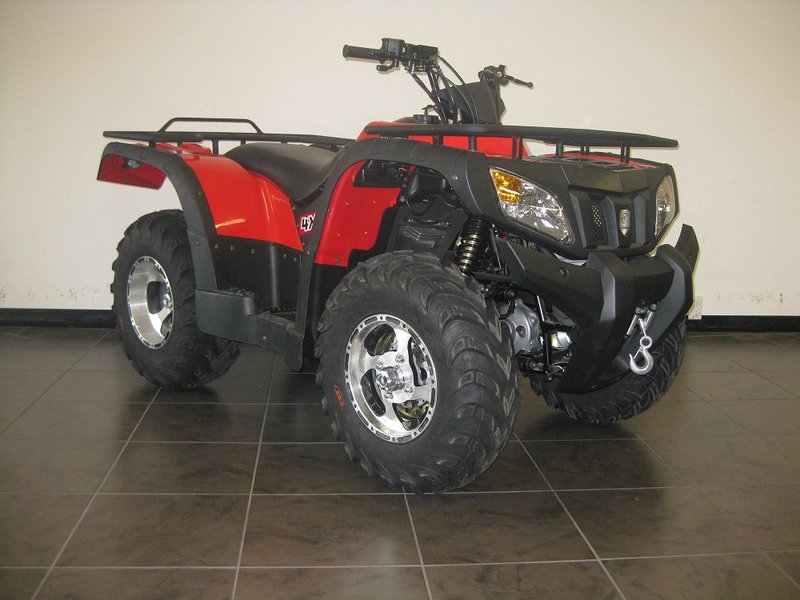

400cc Quad Bike
Price: $7,000.00 AUD inc GST
Dealer retail prices may vary due to freight costs
